Weatherfold 100

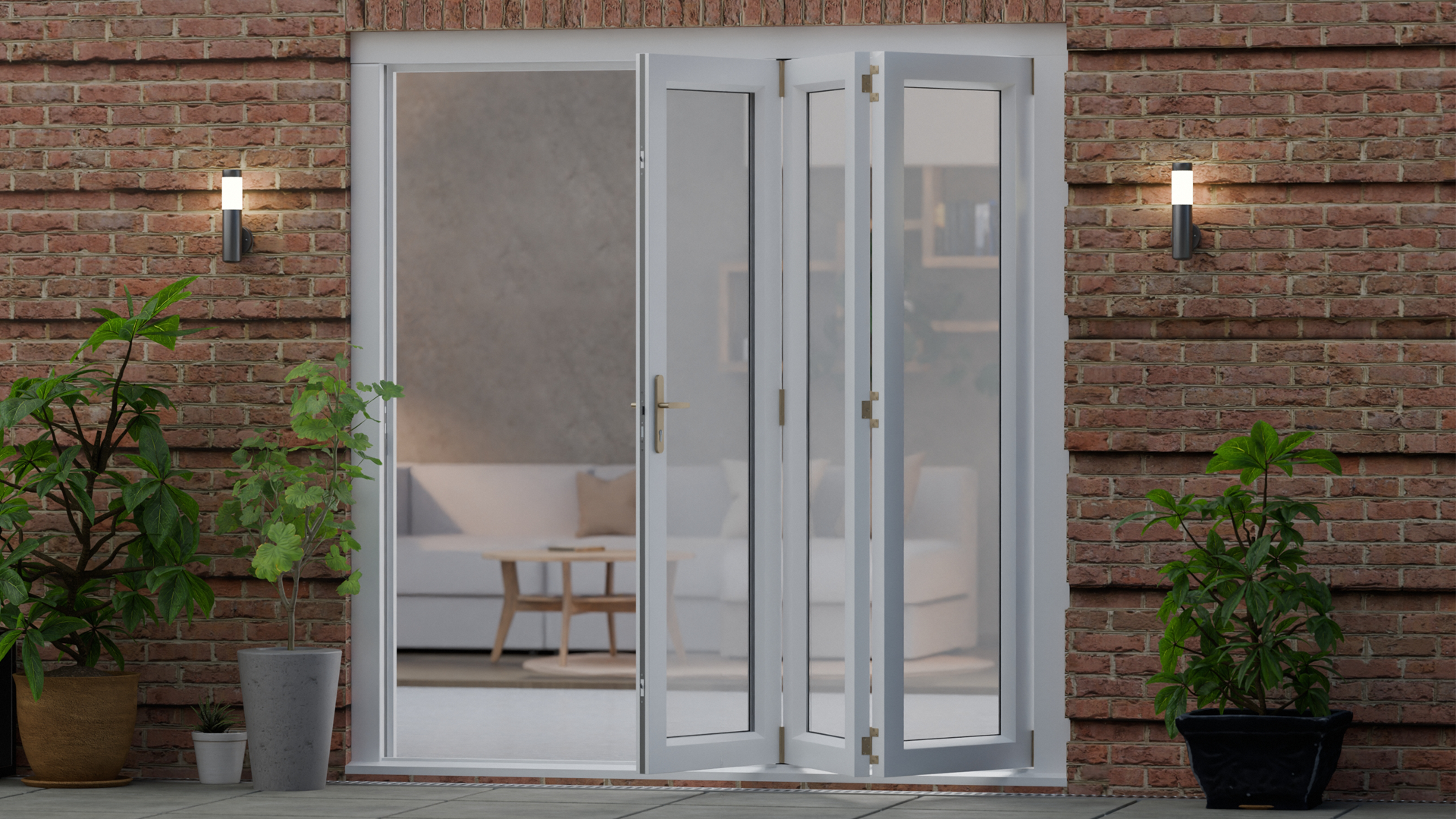

Revamp your design aesthetic and enhance your options with the Weatherfold 100 exterior folding door hardware system. Ideal for non-mortice timber doors, this innovative system enables the doors to fold to either side of the opening, creating a spacious entrance.

Engineered for longevity and reliability, Weatherfold 100 is a top-performing hardware system, perfect for doors that demand exceptional corrosion resistance and weatherproofing.

Supplied in four premium finishes: Satin Stainless Steel, Polished Stainless Steel, PVD Brass and PVD Black.



Top hung folding door hardware system for timber doors, weighing up to 100kg.

  • For residential and commercial folding systems where a high level of corrosion resistance and weatherproofing is required
  • Capable of supporting up to 8 equal size panels folding to either side of the opening, with either inward or outward opening functionality
  • Supplied with precision stainless steel bearings and 316 marine stainless steel cast hangers for extra corrosion resistance
  • Patented 'set & forget' push button mechanism allows for easy installation and simple height adjustment
  • For heavier doors use Weatherfold 150

Track System

Maximum Number of Panels

Maximum Panel  Width

Maximum Panel Height

Maximum Panel Thickness

Maximum Panel Weight

Door Material

Application

Weatherfold 100

8 each way

1000mm



2200mm

35-68mm

100kg

Timber

External

Weatherfold 100 Folding Door Hardware:

Typical LayoutsRuns Of 250
Top Track
FinishRuns of 94PPA
Guide Channel
BWS1F-100SH
Pivot Set
BWS2-100SH
End Hanger Set
BWS4F-100SH
Intermediate Hanger Set
BW3-100H OR
BW5-100H
Hinge Sets
BW7-100H OR
BW6-100H
Hinge Handle Sets
456R Flush Bolts
Locking or
Non-Locking
882 Magnetic Catch
(882/65 Magnetic Catch For Swing Leaf)
401
Flush Pulls
2 Panels Folding1SS

PS

PB

BLK
111010212
3 Panels Folding111010121 (1)3
4 Panels Folding1111102434
5 Panels Folding111 21143 (1)4
6 Panels Folding1111212655
Additional NotesAvailable in lengths of 2000mm, 2500mm, 3000mm, 3500mm, 4000mm, 5000mm and 6000mmAvailable in lengths of 2000mm, 2500mm, 3000mm, 3500mm, 4000mm, 5000mm and 6000mmIf you require a single
leaf to oppose the
above layouts, add
1no  BWS1F-35SH
If you have 2no 2 door layouts then allow for larger gap where centre doors meet Based upon whether
doors open to wards
track or away from it
Based upon whether
doors open to wards
track or away from it
If you require a single leaf to oppose the above layouts, amend flush bolt numbers accordingly.

Cranked bolts for inward folding and extended bolts are also available.
Standard 882 Magnetic catch  use on doors without lever handles. 882/65 for use on swing leaves where lever handles are fitted.Normally used with doors folding away from track in leiu of hinge handles. Reduce numbers if lever handles used



Weatherfold 100 Door Hardware Kits:

Product Description

Kit Code

Finish

Track & channel Length

BWS1-100H Adjustable Pivot Set

BWS2-100H Universal End Hanger Set

BWS4-100H Intermediate Hanger Set

BW3-100H Straight Hinge Handle Set

BW7-100H Offset Hinge Handle Set

456RE Lockable Flush Bolts

882 Catch

882/65 Swing Door Catch

2 Door Kit

WF100-H-2P-OUT-22









SS



BLK



PS



PB

2000mm x 1

1

1

0

1

0

2

1

0

3 Door Kit

WF100-H-3P-OUT-22

3000mm x 1

1

0

1

0

1

2

1

1

4 Door Kit

WF100-H-4P-OUT-22

2000mm x 2

1

1

1

0

2

4

3

0

5 Door Kit

WF100-H-5P-OUT-22

2500mm x 2

1

0

2

1

1

4

3

1

6 Door Kit

WF100-H-6P-OUT-22

3000mm x 2

1

1

2

1

2

6

5

0
