Interfold 35F

Finish:

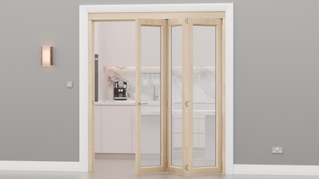

Image of Finish

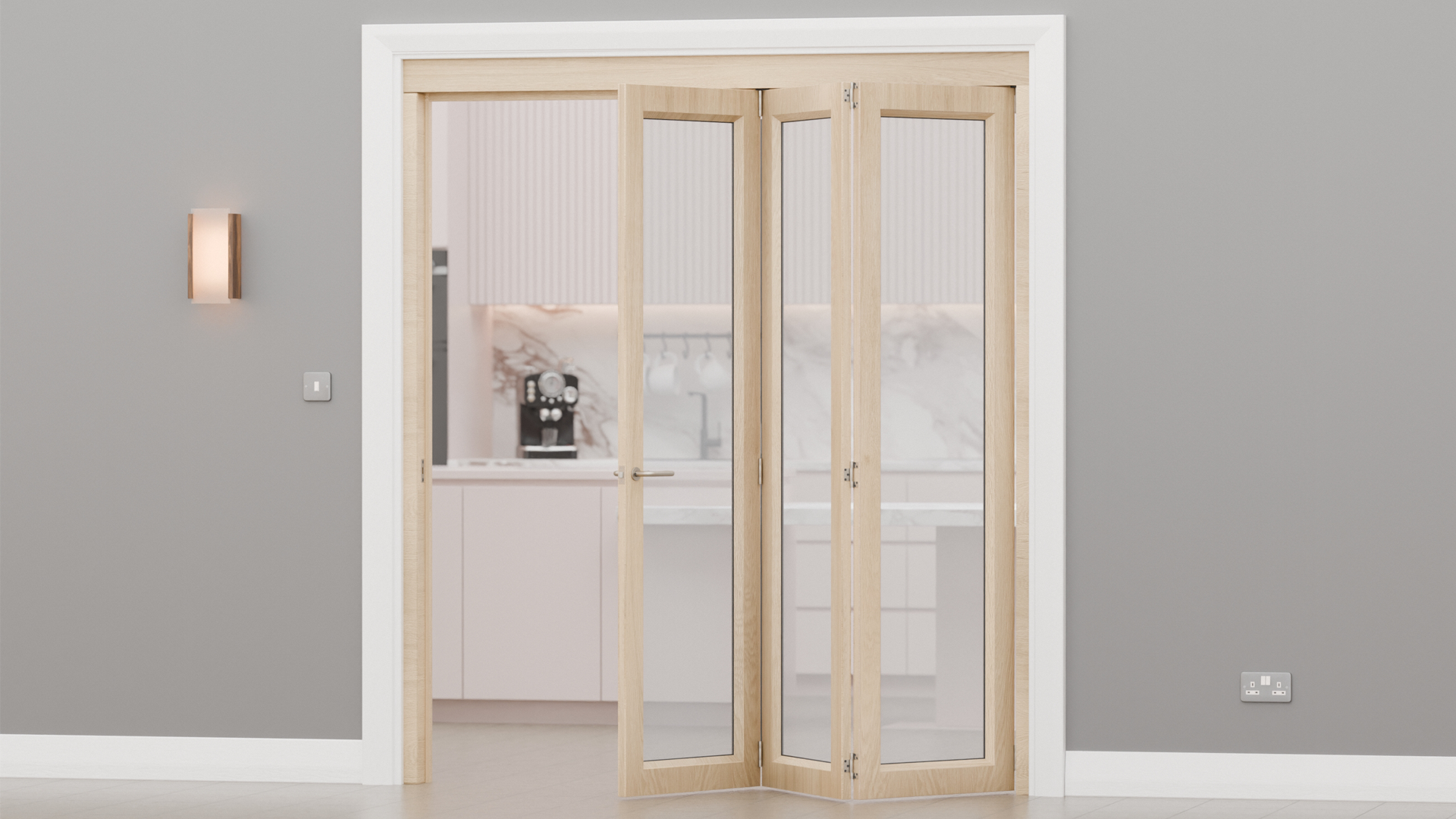

Image of Finish

Interfold 35F is a reliable, top hung, end folding system crafted with both residential and commercial applications in mind. Capable of supporting doors of equal width up to 35kg, this innovative system does not require a floor channel, yet has a rebated frame which can incorporate seals if required.

With an impressive range of systems to choose from, Interfold offers 2 colour options to perfectly blend with any décor or style. This system is perfect for partitioning off rooms, offering an effective and aesthetically pleasing solution for optimising your interior space.



Top hung folding door hardware system for timber doors of equal width, weighing up to 35kg.

  • For residential and commercial applications where no floor channel is required
  • Rebated frame to accommodate additional seals
  • Nylon wheeled hangers and anodised aluminium track provide a smooth quiet operation
  • A maximum of 4 doors can be pivoted to each side of the opening
  • For timber systems with all doors of equal width
  • For heavier doors or larger openings use Interfold 50 which allows 8 doors to fold to the left or right of an opening

Interfold 35F

Track System

Max Number of Panels

Maximum Panel Width

Maximum Panel Height

Panel Thickness

Maximum Panel Weight

Door Material

Application

Interfold 35F

4 each way

820mm



2600mm

35-44mm

35kg

Timber

Internal

Interfold 35F Kits

Track System

Max Number of Panels

Maximum Panel Width

Maximum Panel Height

Panel Thickness

Maximum Panel Weight

Door Material

Application

Interfold 35F Kits

4 each way

762mm



2200mm

35-44mm

35kg

Timber

Internal

Interfold 35F Folding Door Hardware:

Door Layout

Runs of 120
Top Track

Finish

BWS1F-35SH
Adjustable Pivot
Set

BWS2F-35SH
Universal End
Hanger Set

BWS4F-35SH
Intermediate
Hanger Set

BW7-35H
OR
BW6-35H
Offset Hinge
Hanger Set

BW3-35H
OR
BW5-35H
Straight Hinge
Hanger Set

360 Flush Bolts
Locking or
Non-Locking

401
Flush Pulls

2 Panel Folding

1

SS


PS

1

1

0

0

1

2

2

3 Panel Folding

1

1

0

1

1

0

3

3

4 Panel Folding

1

1

1

1

2

0

4

4

Additional Notes

Available in lengths of 2000mm, 2500mm, 3000mm, 3500mm, 4000mm, 5000mm and 6000mm

If you require a single
leaf to oppose the
above layouts, add
1no  BWS1F-35SH

If you have 2no 2 door layouts then allow for larger gap where centre doors meet



Based upon whether
doors open towards
track or away from it

Based upon whether
doors open towards
track or away from it

If you require a single leaf to oppose the above layouts, amend flush bolt numbers accordingly

Normally used with doors folding away from track in leiu of hinge handles. Reduce numbers if lever handles used



Interfold 35F Folding Door Hardware Kits:

Product Code

Description

Track Length

Finish

BWS1F-35H

Adjustable Pivot

Set

BWS2F-35SH

Universal End

Hanger Set

BWS4F-35SH

Intermediate

Hanger Set

BW7-35H

Offset Hinge

Handle Set

BW3-35H

Straight Hinge

Handle Set

360

Flush Bolts

INT35F-2P

Interfold 35F 2 Door Kit

2500mm x 1





SS





PS

1

1

0

0

1

2

INT35F-2+1P

Interfold 35F 2+1 Door Kit

2500mm x 1

2

1

0

0

1

2

INT35F-2+2P

Interfold 35F 2+2 Door Kit

3500mm x 1

2

2

0

0

2

4

INT35F-3P

Interfold 35F 3 Door Kit

2500mm x 1

1

0

1

1

0

3

INT35F-3+1P

Interfold 35F 3+1 Door Kit

3500mm x 1

2

0

1

1

0

5

INT35F-3+2P

Interfold 35F 3+2 Door Kit

2000mm x 1

2

1

1

1

1

5

INT35F-3+3P

Interfold 35F 3+3 Door Kit

2500mm x 1

2

0

2

2

0

8
