Single Run 60

Finish:

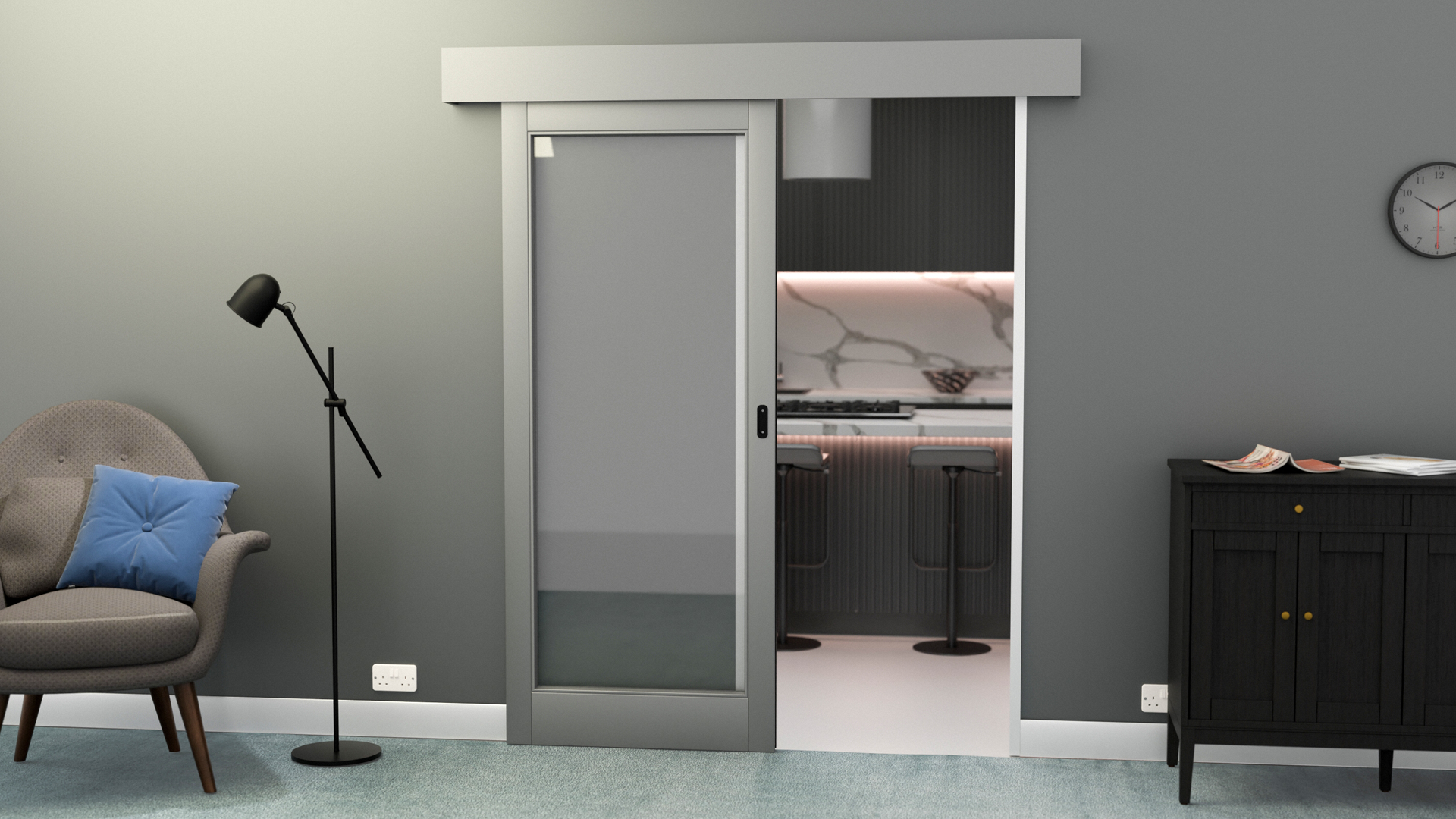

Optimise and enhance interior spaces with the Brio Single Run 60 a top hung, aluminium track system designed for residential and light commercial interior sliding panels weighing up to 60kg. With options available to suit a single panel, two panels bi-parting or multiple panels stacked in parallel, this versatile system comes with two plates to allow for standard straight sliding or cavity-based installations.

Featuring a 4 wheeled hanger and quick release hanger plate design for ease of installation and adjustment, the Single Run 60 is the ideal choice for creating flexible, stylish living areas.

Suitable for interior, top hung sliding panels, weighing up to 60kg.

For residential and light commercial applications
Aluminium track may be fitted directly to the lintel, in single or mulitple lines, or face fitted to the lintel using a single line of brackets
Hangers come as standard with a steel bracket and four nylon tyred wheels with precision bearings
Soft close accessory available to gently pull the door into a fully closed position to avoid slamming

Track System

Maximum Panel Width

Maximum Panel

Height

Minimum Panel Thickness

Maximum Panel Weight

Door Material

Application

Single Run 60

1200mm

2400mm

19mm

60kg

Timber or Metal

Internal

Single Run 60 Sliding Door Hardware:

		Top Hanger Selection		Bottom Guidance Selection					Optional Hardware can be adjusted based upon individual applications
Typical Layouts	60A Runs of Top Track	607 Standard Hanger	609 / 610 Zero Clearance Hanger	106E/94 Door Mounted Guides	106A/94 Wall Mounted Guide	101N Floor Mounted Guide	55G Captive Nylon Bottom Guide	94P Runs Of Bottom Guide Channel	924-CA48 Interlock	B4742.SS Door Stop	456R Flush Bolts Locking or Non-Locking	401 Flush Pulls
1 Door Sliding	1	2	2	2	1	1	1	1	1	1	1	2
2 Doors Bi-Parting	1	4	4	4	2	2	2	1	2	2	2	4

2 Doors Bi-Passing	2	4	4	4	N/A	2	2	2	0	0	2	2
3 Doors Bi-passing	2	6	6	6	N/A	3	3	2	0	0	3	4

2 Door Telescopic	2	4	4	4	1	N/A	N/A	2	2	2	2	3
3 Door Telescopic	3	6	6	6	2	N/A	N/A	3	3	3	3	4
Additional Notes	Available in lengths of 2000mm, 2500mm, 3000mm, 3500mm, 4000mm, 5000mm and 6000mm		609 x 2 for non Softclose application. 609 x1 + 610 x1 with Softclose	2no Guide rollers place at each end of the door You will also require 94P guide channel to recess into the floor for the whole width of the opening	Single wall mounted guide placed so that it is always in contact with the door and hidden from view. Requires 94P guide channel to be inverted and recessed into bottom of the door.	Single floor mounted guide placed so that it is always in contact with the door and hidden from view. Requires a sawcut groove on the bottom of the door.	Captive guide set that is placed either side of the door if no door preparation is required.	Available in lengths of 1000mm, 2000mm, 2500mm, 3000mm, 3500mm, 4000mm, 5000mm and 6000mm		Required to both stop the door and for telescopic panels to catch the doors when opening.
