Single Run 120

Finish:

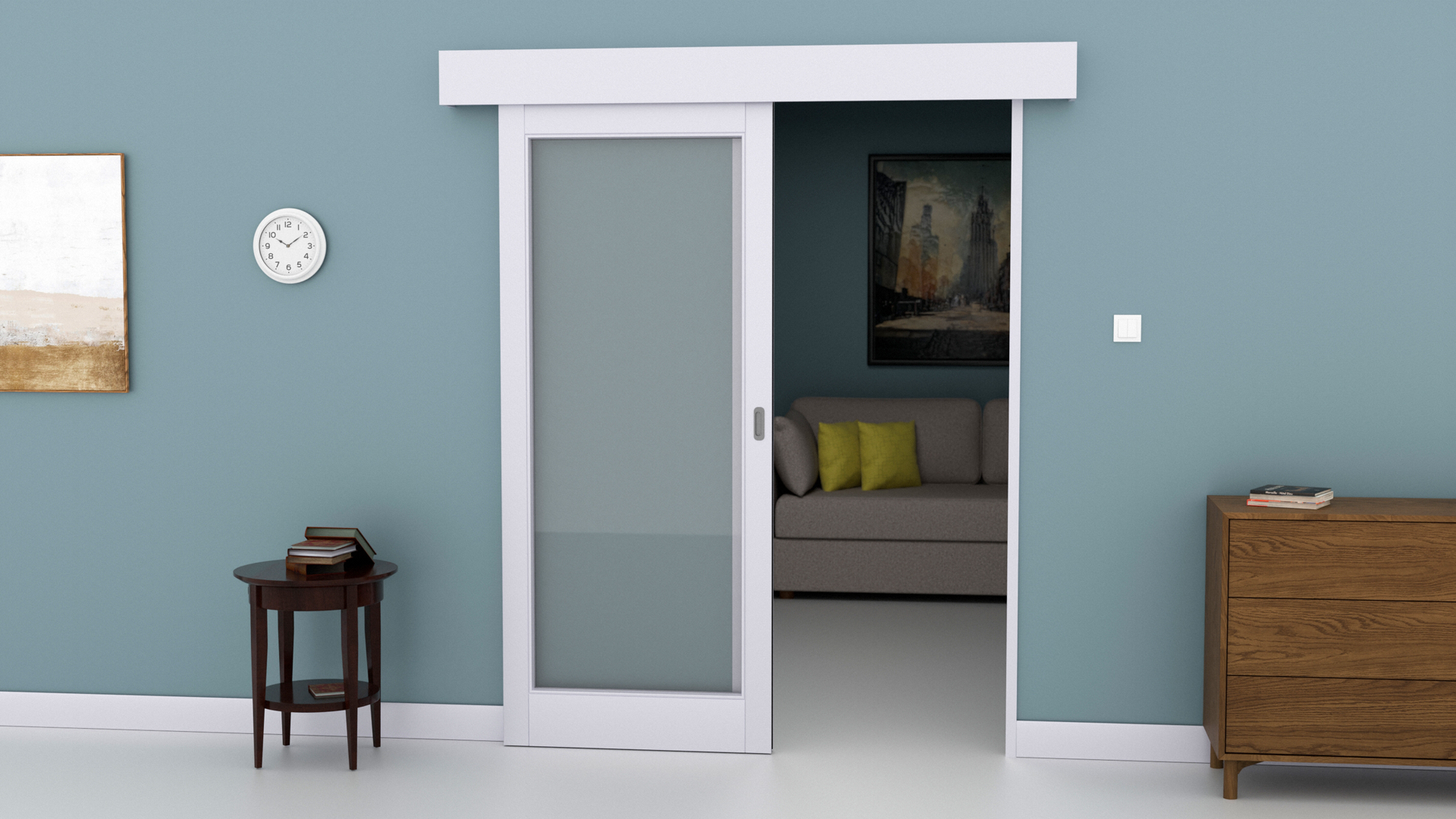

Single Run 120 system is expertly crafted for both interior and exterior sliding doors and shutters, handling weights up to 120kg with ease. Featuring cast stainless steel hangers with 4 nylon-tyred high-speed precision bearings, it guarantees smooth operation.

With options available for a single panel slid to one side, or two panels bi-parting along a single track, the 120 track can be effortlessly soffit-fixed through the top or side-fixed with Brio stainless steel face-fixed mounting brackets, accommodating both single and double track runs.

Suitable for interior and exterior, top hung sliding panels, weighing up to 120kg.

For residential and light commercial applications
Aluminium track can be top fixed, or side fixed with Brio stainless steel fixed mounting brackets for single and double track runs
25-micron clear anodised aluminium track for improved corrosion performance and smooth operation
Hangers come with four nylon tyred wheels with high-speed precision bearings
Hangers and fixing plates allow simple height adjustment by tightening and loosening the hanger bolt

Track System

Maximum Panel Width

Maximum Panel

Height

Minimum Panel Thickness

Maximum Panel Weight

Door Material

Application

Single Run 120

1500mm

2400mm

19mm (standard)

32mm (zero clearance)

120kg

Timber or Metal

Internal or External

Single Run 120 Sliding Door Hardware:

		Top Hanger Selection		Bottom Guidance Selection					Optional Hardware can be adjusted based upon individual applications
Typical Layouts	Runs of 120A Top Track	57SS/EN Standard Hanger	61SS/EN Zero Clearance Hanger	106E/94 Door Mounted Guides	106A/94 Wall Mounted Guide (Internal)	101N Sawcut Floor Guide (Internal)	55G Captive Nylon Floor Guide Set (Internal)	94P Runs of Bottom Guide Channel	924-CA48 Interlock	B4742.SS Door Stop	456R Flush Bolts Locking or Non-Locking	401 Flush Pulls
1 Door Sliding	1	2	2	2	1	1	1	1	1	1	1	2
2 Doors Bi-Parting	1	4	4	4	2	2	2	1	2	2	2	4

2 Doors Bi-Passing	2	4	4	4	N/A	2	2	2	0	0	2	2
3 Doors Bi-passing	2	6	6	6	N/A	3	3	2	0	0	3	4

2 Door Telescopic	2	4	4	4	1	N/A	N/A	2	2	2	2	3
3 Door Telescopic	3	6	6	6	2	N/A	N/A	3	3	3	3	4
	Available in lengths of 2000mm, 2500mm, 3000mm, 3500mm, 4000mm, 5000mm and 6000mm			2no Guide rollers place at each end of the door You will also require 94P guide channel to recess into the floor for the whole width of the opening	Single wall mounted guide placed so that it is always in contact with the door and hidden from view. Requires 94P guide channel to be inverted and recessed into bottom of the door. Internal use only	Single floor mounted guide placed so that it is always in contact with the door and hidden from view. Requires a sawcut groove on the botto of the door. Internal use only	Captive guide set that is placed either side of the door if no door preparation is required.	Available in lengths of 1000mm, 2000mm, 2500mm, 3000mm, 3500mm, 4000mm, 5000mm and 6000mm		Required to both stop the door and for telescopic panels to catch the doors when opening.
