Timberoll 100

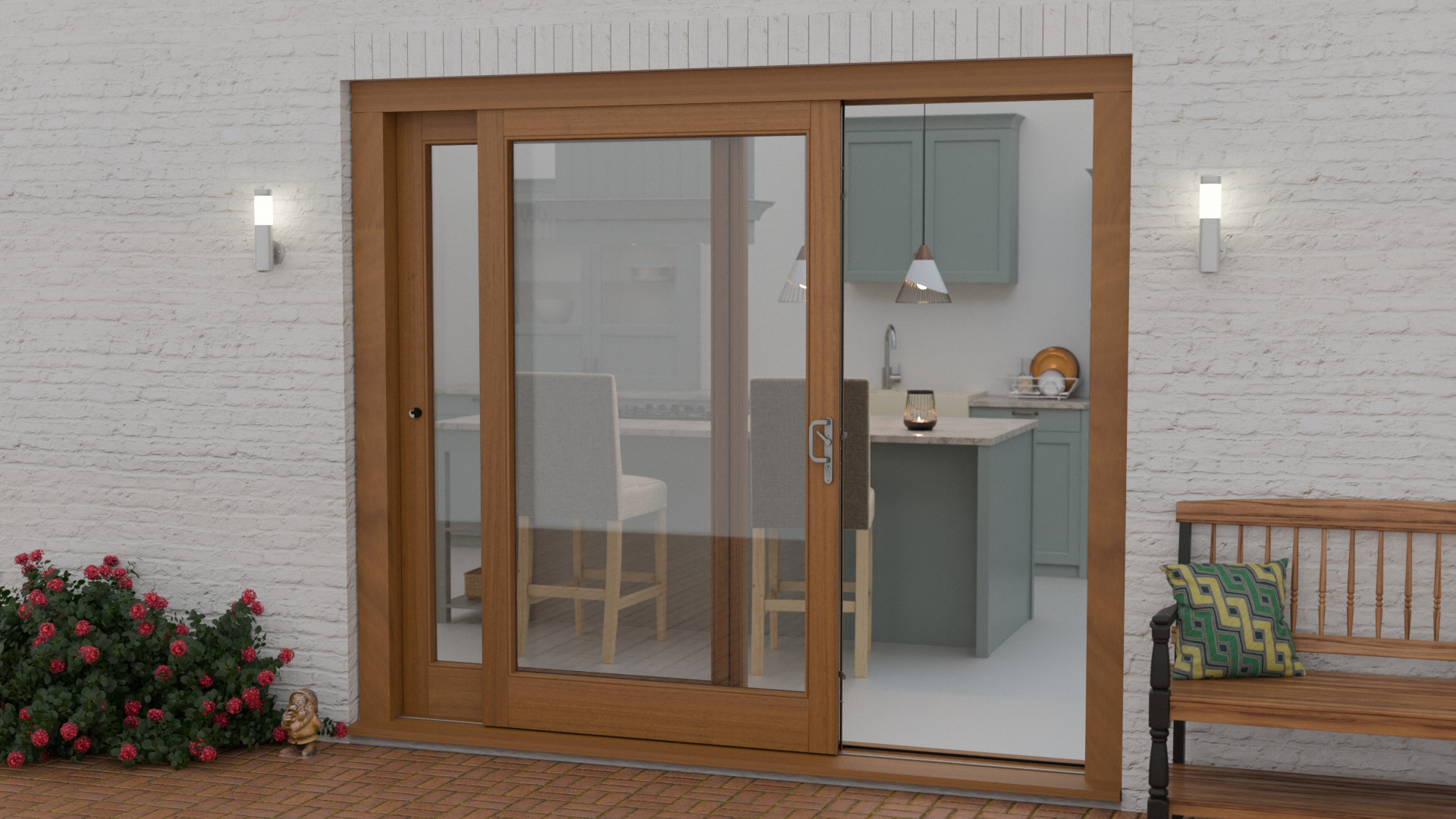

Timberoll 100 is a bottom-rolling sliding system specifically designed for lighter interior and exterior timber or metal doors.  Capable of supporting door panels up to 100kg, this simple to use hardware system is perfect for sliding patio doors featuring timber-framed glazed panels.  Any number of panels can be effortlessly configured on single or multiple lines of rail, that allowing them to slide seamlessly to one or both sides of the opening.

When combined with interlocks, anodised aluminium track and guide channels, the system guarantees stability and security when closed, whilst providing exceptional weather resistance, insulation, and an effortlessly smooth operation.



Bottom rolling sliding hardware system for interior and exterior doors, weighing up to 100kg.

  • For residential and commercial applications
  • Designed for straight sliding partitions or fully glazed patio doors.  Also suitable for flush panelled construction
  • Ideal for applications where the supporting structure or intel is insufficient for the weight of the panel or where headroom is limited
  • Any number of panels can be used on single or multiple lines of rail, sliding to one or both sides of the opening
  • System slides on two self-levelling, height adjustable, double wheeled bottom roller units with reinforced nylon outer tyres and precision bearings for a smooth, quiet operation
  • Equipped with interlocks, anodised aluminium track and guide channels, the system guarantees stability and security

Track System

Maximum Panel Width

Maximum Panel

Height

Minimum Panel Thickness

Maximum Panel Weight

Door Material

Application

Timberoll 100

1800mm

2400mm

40mm

100kg

Timber or Metal

Internal or External

Timberoll 100 Sliding Door Hardware:

Typical Layouts

Run of 94PPA Channel

113/94 Corner Fix or 106E/94 Top Fix Guides

913DBA-N

Bottom Rollers

Runs of 913

Track

924 Interlock

B4742SS Door Stop

456R Flush Bolts

Locking or

Non-Locking

401 Flush Pulls

1 Panel Sliding

1

2

2

1

1

1

1

2

2 Panels Bi-Parting

1

4

4

1

2

2

2

4

2 Panels Bi-passing

2

4

4

2

0

0

2

2

3 Panels Bi-passing

2

6

6

2

0

0

3

4

2 Panel Telescopic

2

4

4

2

2

2

2

3

3 Panel Telescopic

3

6

6

3

3

3

3

4

*Optional hardware can be adjusted based upon individual applications
